Plastic bottle manufacturing is a growing industry worldwide, especially for beverage, water, and liquid packaging. Increasing production efficiency, reducing costs, and improving product quality are the top priorities for manufacturers. YG’s blowing machines—ranging from semi-automatic to fully automatic models—provide practical solutions to meet these goals.
Types of YG Blowing Machines

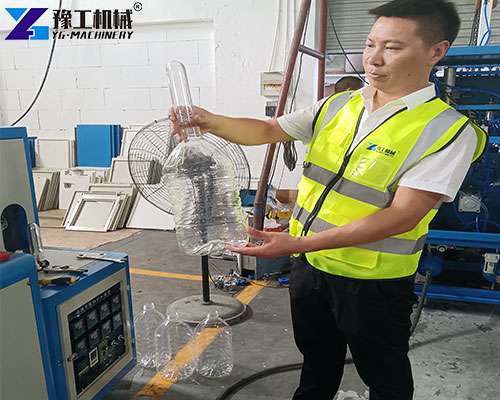

- Suitable for small and medium-sized factories
- Ideal for businesses starting production with lower investment
- Offers easy operation and flexibility for limited bottle sizes
- Requires minimal maintenance and training
| Model | YG-200 | YG-600 | YG-800 | YG-1200 |
| Volume of Product(L) | 1-6 | 0.25-2.5 | 0.1-1.5 | 2 |
| Blowing Air Pressure(Mpa) | 1.5-2.5 | 1.0-2.5 | 1.0-2.0 | 1.0-3.0 |
| Production Capacity(PCS/H) | 200-450 | 600-900 | 800-1000 | 1200-1800 |
| Max Mould Thickness(mm) | 130-280 | 110-230 | 110-210 | 110-230 |
| Mould Opening Stroke(mm) | 230 | 150 | 135 | 150 |
| Machine Weight(T) | 0.8 | 0.65 | 0.65 | 0.5+0.5 |
| Main Machine Size(M) | 1.85*0.7*1.75 | 1.5*0.7*1.65 | 1.45*0.65*1.6 | 1.5*0.7*1.65 |
| Heater (M) | 1.8*0.7*1.5 | 1.8*0.7*1.5 | 1.1*0.6*1.1 | 1.7*0.7*1.35 |
| Heater Weight (T) | 0.2 | 0.2 | 0.1 | 0.2 |
| Rated Power(KW) | 7.5 | 7.5 | 3.6 | 7.5 |

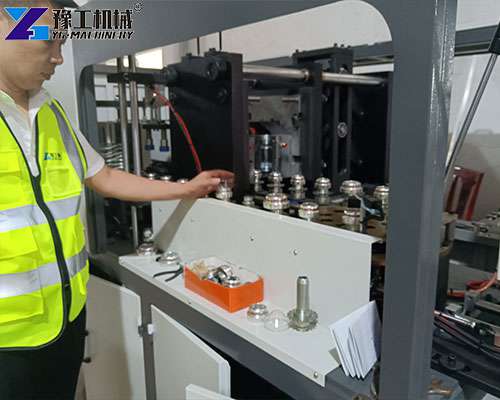

2.Fully Automatic Blowing Machine
- Designed for large-scale production lines
- Supports high-speed, continuous bottle forming
- Can produce various bottle sizes and shapes efficiently
- Integrated with automation systems for seamless production
| Model | YG-1H-3L | YG-1H-5L | YG-2H-1.25L |
| Production Capacity | 1 cavity | 1 cavity | 2 cavity |
| Theoretical output(PCS/H) | 600-800 | 500-600 | 1500-2000 |
| Pressure for blowing(KG) | 30 | 30 | 30 |
| Flow rate for working(m³) | 0.8 | 1 | 0.8 |
| Flow rate for blowing(m³) | 0.8 | 1 | 0.8 |
| Neck diameter(MM) | 12-80 | 50-110 | 12-30 |
| Max diameter&height(MM) | 120*200 | 150*280 | 80*300 |
| Machine size(M) | 2.6*1.6*1.8 | 2.7*1.6*1.8 | 2.6*1.5*1.8 |
| Machine weight(KG) | 1800 | 1800 | 1800 |
By providing both options, YG allows manufacturers to select the machine that best fits their production capacity, budget, and operational needs.
How YG Blowing Machines Enhance Plastic Bottle Production?
Higher Production Efficiency
- Semi-automatic models can produce hundreds of bottles per hour, suitable for smaller factories
- Fully automatic machines can reach thousands of bottles per hour, ensuring large-scale orders are met
- Continuous production reduces downtime, increasing overall output
Improved Bottle Quality
- Consistent wall thickness for strong, uniform bottles
- Accurate bottle neck molding ensures cap compatibility
- Reduces bottle defects, saving materials and costs
Seamless Integration with Production Line
- YG blowing machines can be combined with water filling machines, capping machines, and packaging machines
- Complete lines ensure smooth workflow from bottle forming to final packaging
- Minimizes labor costs and improves production reliability
Versatile Applications of YG Blowing Machines

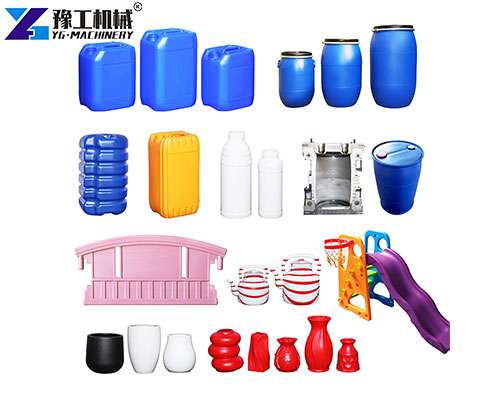

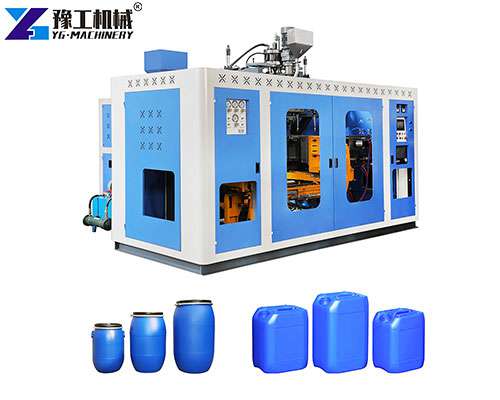

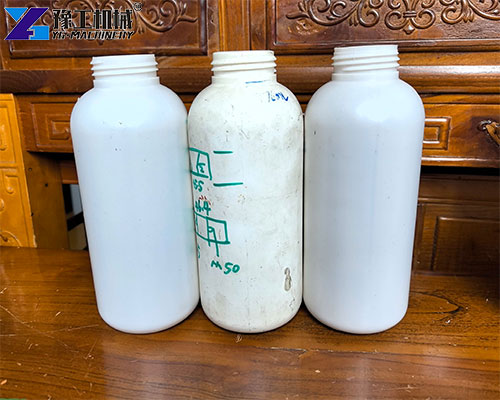

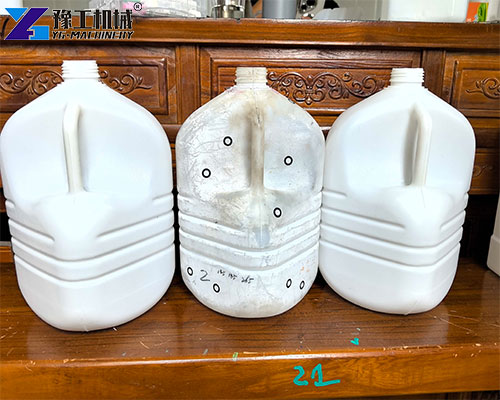

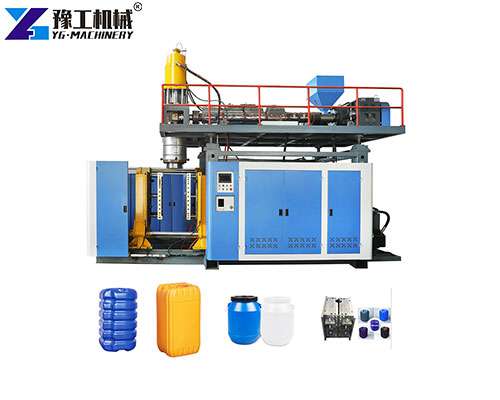

In addition to PET bottles for beverages and mineral water, YG blowing machines can also produce a wide range of plastic containers, including urea bottles, pharmaceutical bottles, cooking oil bottles, chemical drums, plastic canisters, large water storage tanks, and IBC containers. These versatile machines are suitable for various industries, from food and beverage to chemicals and agriculture, offering high efficiency, consistent quality, and customizable production lines for different bottle sizes and shapes.
Who Should Choose Semi-Automatic vs Fully Automatic Machines?
| Type | Suitable For | Advantages |
| Semi-Automatic | Small to medium factories, startups | Low investment, flexible, easy operation |
| Fully Automatic | Large factories, high-demand markets | High efficiency, low labor cost per bottle, scalable |
This flexibility allows YG machines to serve both new entrepreneurs and established beverage factories effectively.
Investment ROI Analysis
Investing in a YG blowing machine not only improves production but also ensures rapid return on investment.
- Reduced Labor Costs: Automatic production lines reduce the number of operators needed.
- Lower Material Waste: Consistent bottle quality decreases scrap and rejects.
- Higher Output & Revenue: Faster bottle forming meets market demand, increasing sales volume.
- Long-Term Reliability: YG machines are made with high-quality materials, reducing maintenance and downtime.
Example: A medium factory installing a semi-automatic blowing machine can increase output by 3–5 times within the first year, covering the machine cost in less than 12 months. For fully automatic systems, ROI can be achieved even faster due to higher production speed and efficiency.
Why Choose YG Blowing Machines?
- High-Quality Materials: Stainless steel and precision components ensure long-term durability.
- Cost-Effective Solutions: Competitive prices with low maintenance costs.
- Customizable Production Lines: Tailored solutions including blowing, filling, capping, and packaging.
- Technical Support: YG provides installation guidance, training, and 24/7 after-sales service.
YG Blowing Machines
YG’s blowing machines are designed to boost efficiency, reduce costs, and improve bottle quality. Whether you are a small startup or a large-scale beverage manufacturer, YG provides semi-automatic and fully automatic solutions that fit your needs. By integrating these machines into a complete production line, manufacturers can achieve faster ROI, higher output, and a competitive edge in the plastic bottle market.Contact us to know more details now!【WhatsApp/WeChat/Phone】+86 13837115193.
